Blue Ox BX3515 Baseplate fits 2001-2003 Suzuki Grand Vitara

Blue Ox

SKU
BX3515
List Price: $692.95
$537.90
Non-Stock FACTORY SHIPPED

Please Note: This is a custom fit product. Please verify fit before ordering. Fit Finder

- +

Product is NOT ELIGIBLE for free shipping

Have a Question ? Talk to a specialist- Live chat or call 877-509-0719

Blue Ox BX3515 Baseplate fits 2001-2003 Suzuki Grand Vitara

Blue Ox baseplates are vehicle specific brackets providing attachment points for you Blue Ox tow bar. The baseplate is integrated into the individual bumper design of the towed vehicle, providing a solid, durable connection between your towing vehicle and your towed vehicle (dinghy).

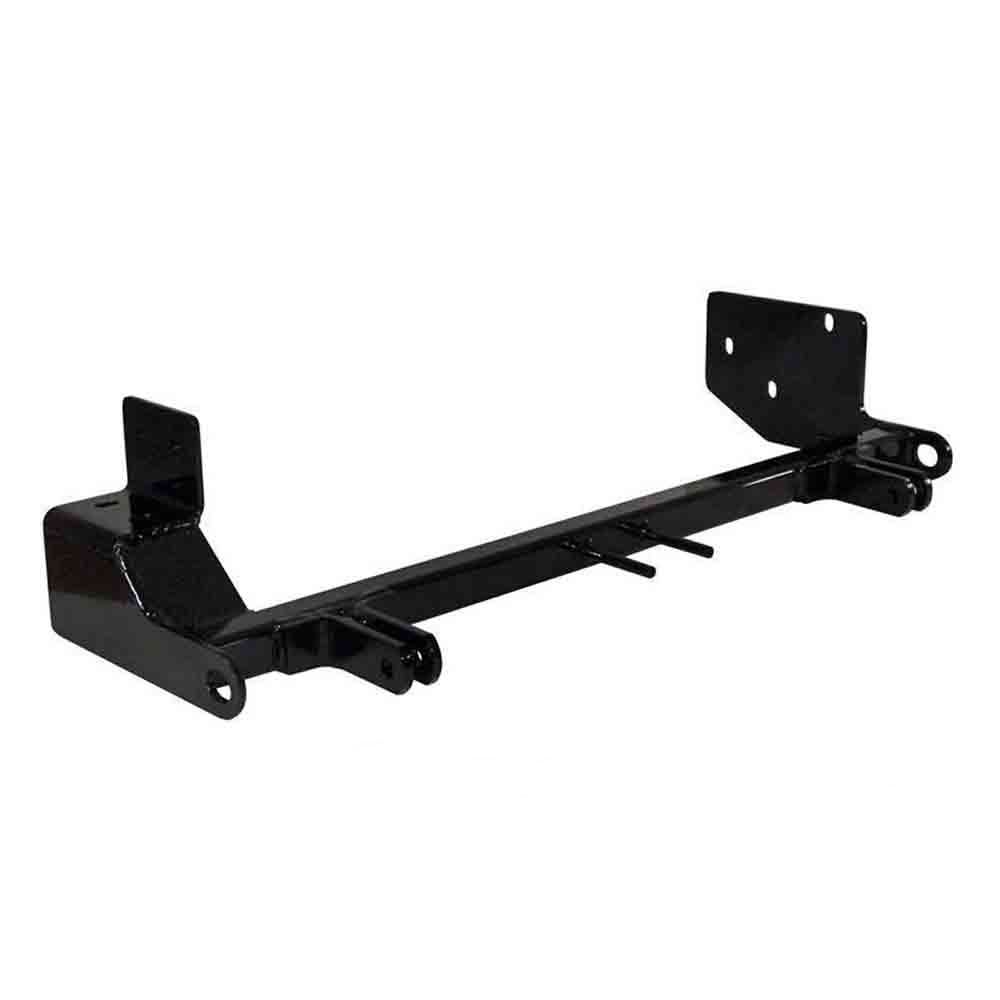

  • Vehicle Specific Custom Baseplate  -                                                                                                             (Baseplate shown, is an example photo of this style of baseplate, please see instructions for actual configuration)
  • Product Details

    Blue Ox baseplates are easy on your suspension and even easier on the eye, because they are designed with hidden reinforcements. Vehicle specific baseplate is integrated into the individual bumper design of the towed vehicle.

    Baseplate Footnotes - 1,3,6,12

    Towed Vehicle Electrical, Brake System & Receiver and Tow Bar Locks are sold separately.

    Baseplates are custom designed for each vehicle, bolting directly into the chassis.
    Uses as many attachment points as possible.

    • Requires no welding
    • Baseplates are hidden beneath the vehicle body
    • All baseplates are backed by a three year limited warranty

    Important Towability Note: Blue Ox offers the above baseplate for your vehicle, but how that vehicle is equipped (i.e. automatic transmission, 4-wheel drive, etc.) must be considered when determining its towability. Please read the owner's manual and/or consult your dealer to determine if your vehicle is flat towable and the correct towing procedures for your vehicle. Additional equipment such as a transmission pump or driveshaft disconnect may be required and are sold separately. Failure to comply with these requirements may result in damage to the towed vehicle or personal injury.



    Specifications

    Specifications
    Brand Blue Ox
    Baseplate Install Time 3 hours
    Tab Type Standard
    Tab Height 17 inch
    Tab Width 22-3/4 inch
    Made In USA
    Warranty Three Years Limited
    Suggested Wiring Bulb and Socket Tail Light Wiring Kit - BX8869

    Instructions

    CLICK HERE

    Compatibility

    Year Make Model Category Description
    2003 Suzuki Grand Vitara Flat Tow Baseplates All Models
    2002 Suzuki Grand Vitara Flat Tow Baseplates All Models
    2001 Suzuki Grand Vitara Flat Tow Baseplates All Models
