Trailer Axle Spindle Kit - (2) 8-Bolt on 6-1/2" Inch Hub Assemblies Includes (2) Square Stock 1-3/4 Inch to 1-1/4 Inch Tapered Spindles & Bearings
Have a Question ? Talk to a specialist- Live chat or call 877-509-0719
Trailer Axle Spindle Kit - (2) 8-Bolt on 6-1/2" Inch Hub Assemblies Includes (2) Square Stock 1-3/4 Inch to 1-1/4 Inch Tapered Spindles & Bearings -
- Bearings included - (2) L-25580 1-3/4" I.D & (2) L-14125A 1-1/4" I.D.
- Pilot diameter 4-1/2", flange diameter 8-1/2". 1/2" diameter lug studs.
- Spindles feature SQUARE 2" stock diameter
Product Details

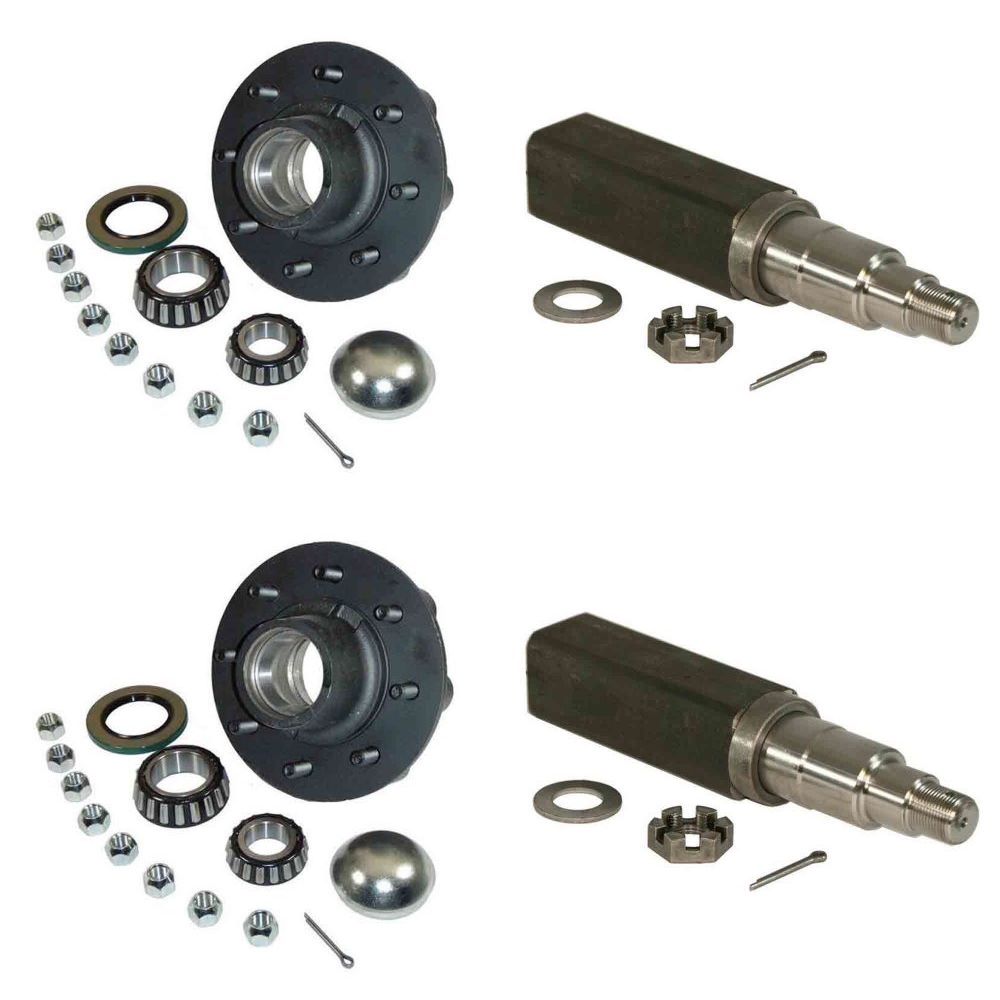

Easily build your own axle with this 6,000 lb rated* hub assembly (*rating as a pair). This kit includes (2) - 8-Bolt on 6-1/2 inch bolt center hubs for 6,000 lb axles, (2) - 1-3/4" to 1-1/4" tapered spindles, (2) castle nut, (2) cotter pin, (16) 1/2-20 lug nuts, (2) 2.25" I.D grease seal, (2) L-14125A 1-1/14" I.D bearing, (2) L-25580 1-3/4" bearing, (2) spindle washer, and (2) dust cap.
PLEASE NOTE: Fabricating an axle requires the proper equipment needed to apply a weld. If you are uncomfortable with your welding capabilities, this project should be handled by a qualified welder.
Specifications
| Bolt Pattern | 8 x 6.5 |
|---|
