Tekonsha ModuLite HD Protector Universal Trailer Light Power Module with Wiring Kit

Draws power directly from the vehicle battery and uses less than 5mA of the vehicle circuit for sensing to turn the trailer functions on and off. The taillight circuit has been upgraded to work with vehicles that use a pulse width modulation (PWM), this will allow the converter to turn on fully and gives the trailer lights full brightness during activation. Works with either LED or incandescent bulbs on tow vehicle or trailer. Comes with everything needed to install a ModuLite including 20 ft. of special undercar 12 ga. wire, fuse, fuse holder and attaching terminals.

• Rated for up to 4.2 amps for Turn/Stop circuits and 7.5 amps for Taillight circuit
• Has integrated re-settable Short Circuit and Overload protection
• Safeguards itself and the tow vehicle from shorts and installation wiring mishaps
• The trailer brakes will override the hazard lamps when the brake is activated
• Will work with most vehicles that have a multiplex system for lighting
• Will not work with vehicles with low-side switch
• Can be used on a 2 wire or 3 wire system
• All solid-state components in potted encapsulation
• Includes integrated protective cover

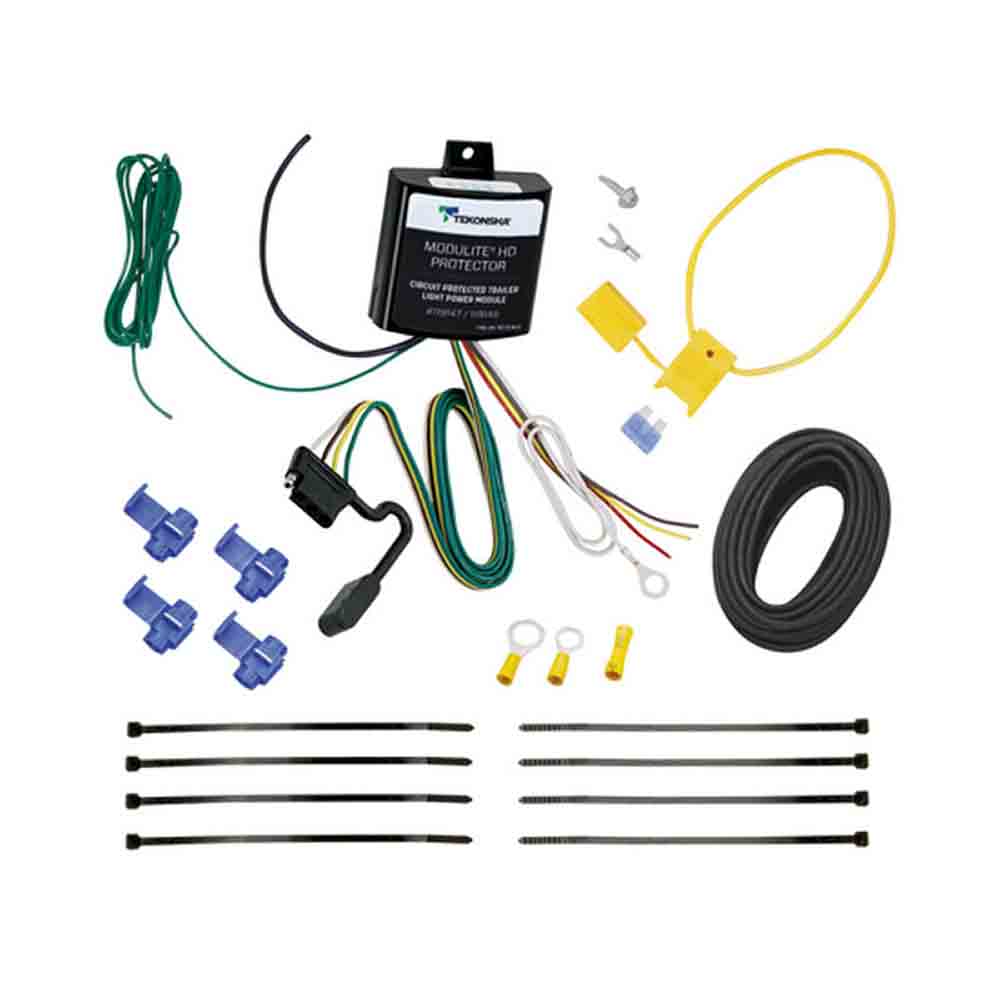

• Comes with everything needed to install a ModuLite including 20 ft. of special undercar 12 ga. wire, fuse, fuse holder and attaching terminals
