Emergency Hub Repair Kit for 4 on 4" Bolt Circle 1 Straight Spindle in Carrying Case for 2,500 lb. Axle
SKU
13110
List Price:
$84.95
Emergency Hub Repair Kit for 4 on 4" Bolt Circle 1 Straight Spindle in Carrying Case for 2,500 lb. Axle
$71.47
In-Stock
Have a Question ? Talk to a specialist- Live chat or call 877-509-0719
Emergency Hub Repair Kit For 1" Inch Straight Spindle Studded Hub on a 4 on 4" Bolt Circle for a 2,500lb axle. Sold as Single with a Capacity of 1,250lb per Hub.
- 4 bolt studs on 4" bolt circle
- 1" straight shaft
- 1250 lb. capacity
- 5-9/16" flange diameter
- SL-122 grease seal (1.249" I.D.), (1.983" O.D.)
- 1-5/8" x1/2" bolts
- L-44643 1" I.D. bearings (races included)
Product Details

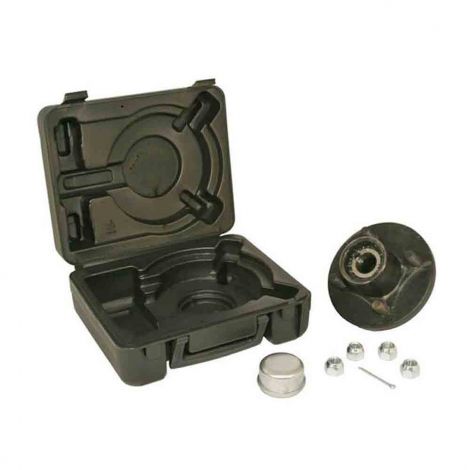

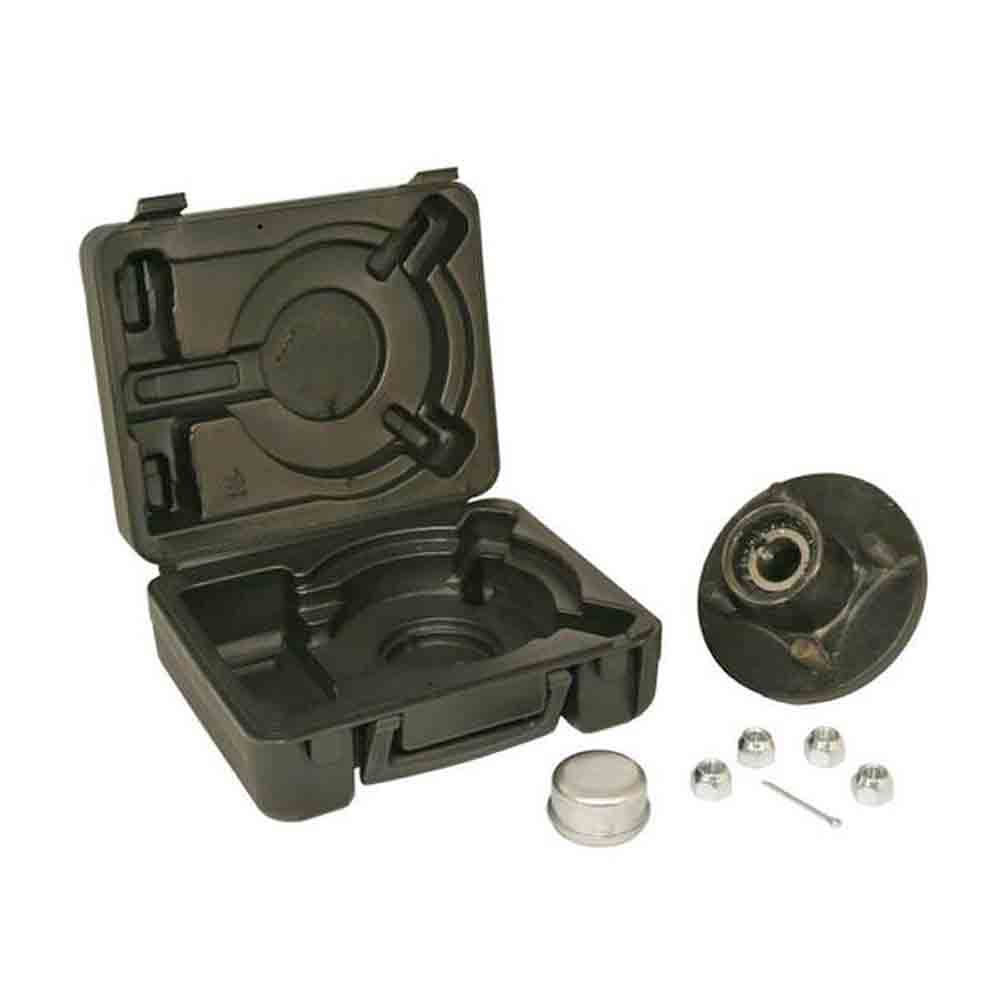

Hub Kits come complete in their own handy storage box, ready to install on your axle. Simply remove your old hub and replace with this pre assembled and pre greased hub. Comes with dust cap, cotter pin, double lip SL-122 grease seal and lug nuts.
This kit features: a studded hub with a 4 on 4" bolt circle to fit a 1" straight spindle with a 1,250lb capacity per hub for a 2,000lb axle. Pilot diameter 2.5 inches, flange diameter 5.56", hub inner diameter 1.98" with a maximum tire size of 12".
Specifications
| Brand | Smith |
|---|---|
| Bolt Pattern | 4 x 4 |
| Capacity | 1,250 lbs. |
| Outside Diameter | 5.56 inch |
| Thread | 1/2-20 |
