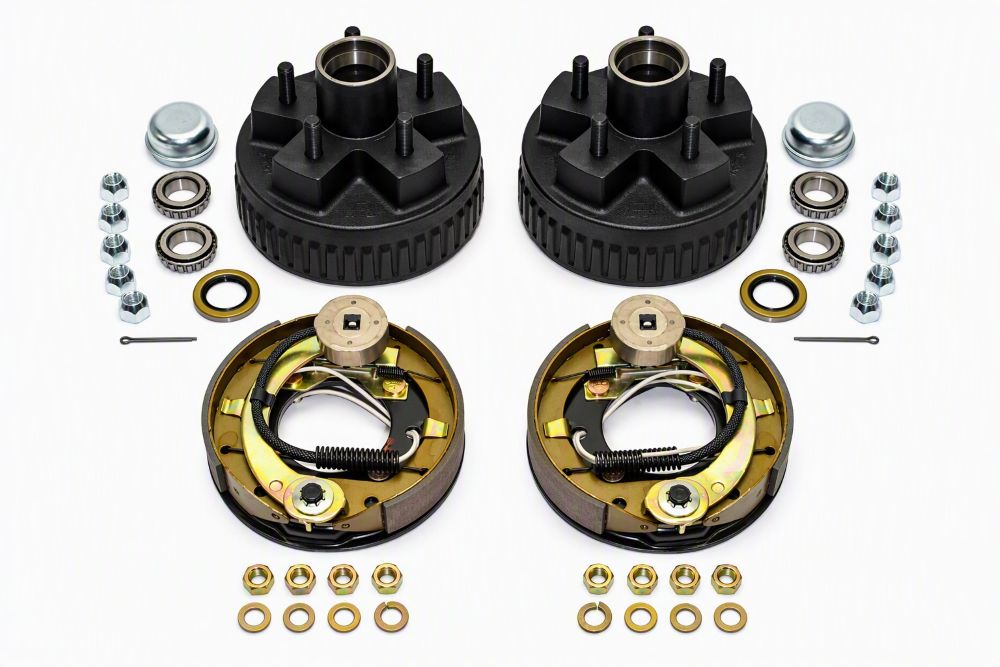

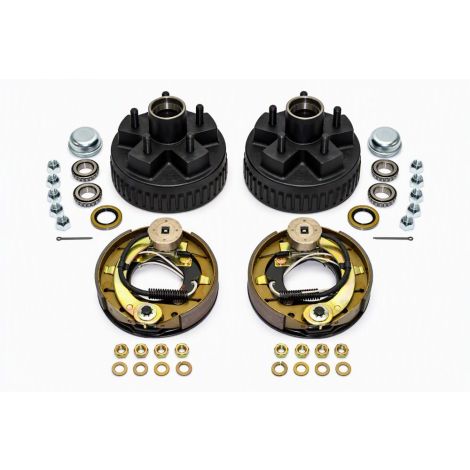

2,200 lb. Trailer Hub & Drum Kit with 7" Electric Brake Assemblies - 5 on 4-1/2" Bolt Pattern With 1-1/16" I.D. Bearings
Have a Question ? Talk to a specialist- Live chat or call 877-509-0719
2,200 lb. Trailer Hub & Drum Kit with 7" Electric Brake Assemblies - 5 on 4-1/2" Bolt Pattern With 1-1/16" I.D. Bearings
Upgrade or replace your trailer's braking system with this complete hub and brake kit designed for 2,000 lb. trailer axles. This all-in-one package includes two 7" hub and drum assemblies and a matched pair of left and right electric brake assemblies, providing everything needed to equip one complete axle. Engineered for dependable braking performance and long service life, this kit is ideal for utility, cargo, and light-duty trailers.
The hub and drum assemblies feature a 5 on 4-1/2" bolt pattern and are designed for use with 7" electric brakes. Each hub has a 1,350 lb. capacity and comes with bearing races pre-installed for easier installation. The included electric brake assemblies measure 7" x 1-1/4" and utilize a 4-bolt mounting pattern.
Applications
Perfect for utility trailers, landscape trailers, cargo trailers, and other light-duty trailer applications requiring a complete 2,200 lb. axle hub and electric brake replacement kit. This package provides a convenient solution for restoring safe, dependable braking and wheel-end performance.
Note: Hub drums are manufactured by Dexter. Brakes are manufactured by TRP.
Product Details
Features
- Complete axle rebuild kit with hubs, drums, brakes, bearings, seals, and hardware
- Fits 2,200 lb. trailer axles
- 5 on 4-1/2" wheel bolt pattern
- 7" x 1-1/4" electric brake assemblies included
- Includes both left-hand and right-hand brake assemblies
- 4-bolt brake mounting pattern
- Pre-installed bearing races for simplified installation
- Compatible with Dexter style brake assemblies
- Includes mounting hardware, lug nuts, dust caps, seals, cotter pins, and bearings
- Designed for reliable trailer stopping performance
Hub & Drum Specifications
- Brand: Dexter
- Capacity: 2,200 lb. axle rating
- Hub Capacity: 1,350 lbs. each
- Bolt Pattern: 5 on 4-1/2"
- Inside Diameter: 7"
- Brake Depth: 2"
- Pilot Diameter: 2.50"
- Flange Diameter: 5.56"
- Overall Height: 4-1/4"
- Wheel Stud Thread Size: 1/2"-20
Kit Includes
Hub & Drum Components
- (2) 7" Hub/Drum Assemblies
- (4) L44649 Bearings (1-1/16" I.D.)
- (2) SL122 Grease Seals (1.50" I.D.)
- (2) DC1505 Dust Caps
- (2) SCP100 Cotter Pins
- (10) STN506 Lug Nuts
Brake Components
- (1) Left-Hand 7" x 1-1/4" Electric Brake Assembly
- (1) Right-Hand 7" x 1-1/4" Electric Brake Assembly
- Complete Mounting Hardware Kit (Bolts, Lock Washers, and Nuts)
Specifications
| Brand | Rigid Hitch |
|---|
