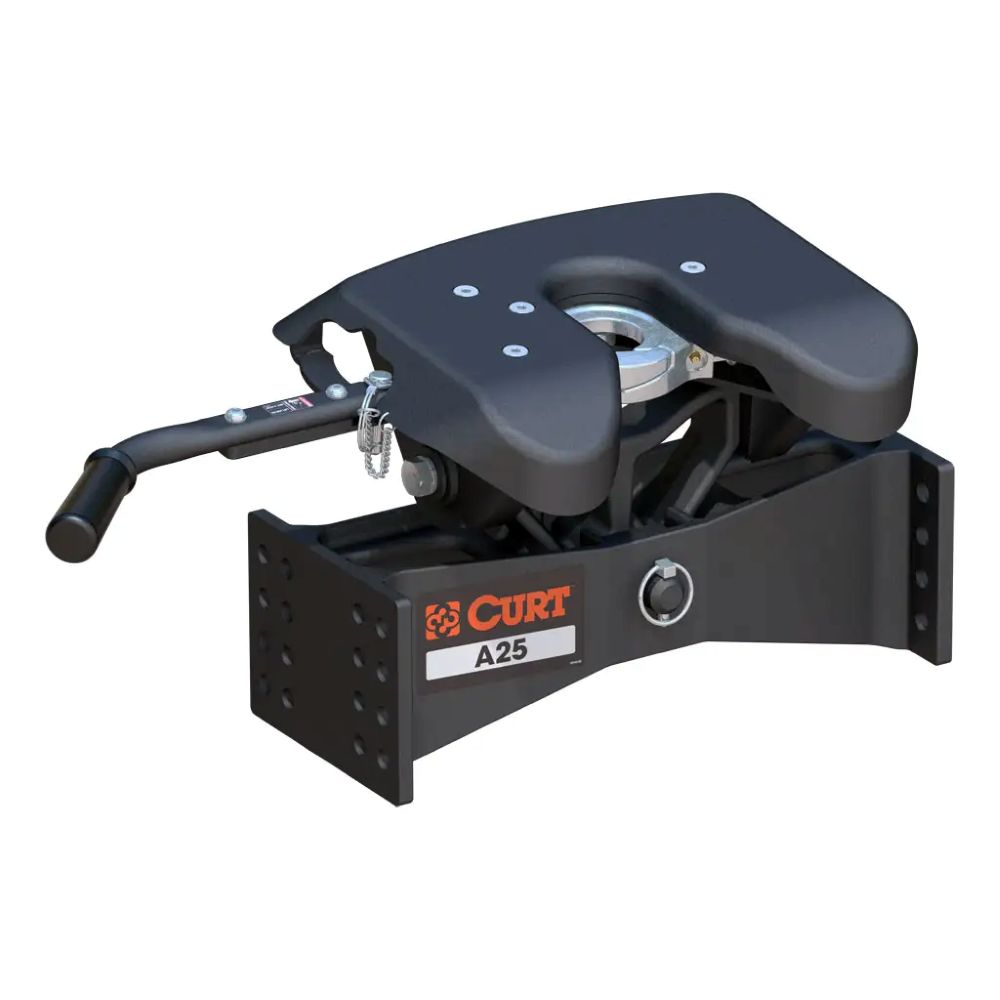

A25 5TH WHEEL HTICH HEAD
Like our other A-series hitches, this 25K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed.
The A25 5th wheel hitch is also engineered for easier installation. The 5th wheel head has a fast, one-pin removal system to make installation and removal from the truck bed easier. This 25K 5th wheel can be mounted using 5th wheel legs or a CURT 5th wheel roller (sold separately). It can also be mounted into the puck system of a truck equipped with the towing prep package, using our OEM puck system legs or roller adapters.
Once installed, the A25 is fast and simple to operate. It features an extra-wide head opening to increase the coupling area for the trailer, and it has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling. To make coupling even easier, it is equipped with a coupling indicator that is visible from the truck cab. The indicator shows the status of the connection and eliminates the need for you to check multiple times while coupling.
Product Details
- Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise
- Fully articulating torsion head for controlled coupling and stable towing
- Lockable handle self-resets to the ready-to-couple position after uncoupling
- Constructed with a cast steel main body for a more precise build
- High-strength, interlocking jaws fully wrap the kingpin to minimize noise
- Extra wide head opening for easier coupling
- Fast, one-pin head removal makes moving easy with smaller, lighter pieces
- Alignment pegs and easy-access bolts for simple leg-to-body attachment
- Three-position coupling indicator clearly shows coupling status
- Compatible with kingpin extension boxes, including common pivoting pin boxes
- Offers three height adjustment positions to adapt to each unique truck bed
- Includes a polyethylene lube plate to eliminate messy grease deposits
- Tested for safety in accordance with SAE J2638
- Protected by a highly durable carbide powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
Notes:
- Includes 5th wheel head only
- Patent# 8,827,298
- Capacity limited to lowest-rated towing component
Specifications
| Brand | Curt |
|---|---|
| Gross Towing Weight (WC) | 25,000 lbs. |
| Finish | Carbide Black Powder Coat |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
