Blue Ox BX1616 Baseplate fits Select Chevy & GMC S-10 & S-15 Models (see compatibility chart)

Blue Ox

SKU
BX1616
List Price: $692.95
$537.90
Non-Stock FACTORY SHIPPED

Please Note: This is a custom fit product. Please verify fit before ordering. Fit Finder

- +

Product is NOT ELIGIBLE for free shipping

Have a Question ? Talk to a specialist- Live chat or call 877-509-0719

Blue Ox BX1616 Baseplate fits Select Chevy & GMC S-10 & S-15 Models (see compatibility chart)

Fits:

  • 1994-04 Chevrolet S-10 Pickup 4WD
  • 1995-97 Chevrolet S-10 Blazer 4WD
  • 1994-03 GMC Sonoma Pickup 4WD
  • 1995-01 GMC S-15 Jimmy 4WD
  • 1998-01 GMC Envoy



Blue Ox baseplates are vehicle specific brackets providing attachment points for you Blue Ox tow bar. The baseplate is integrated into the individual bumper design of the towed vehicle, providing a solid, durable connection between your towing vehicle and your towed vehicle (dinghy). This baseplate has non-removable tow bar tabs.

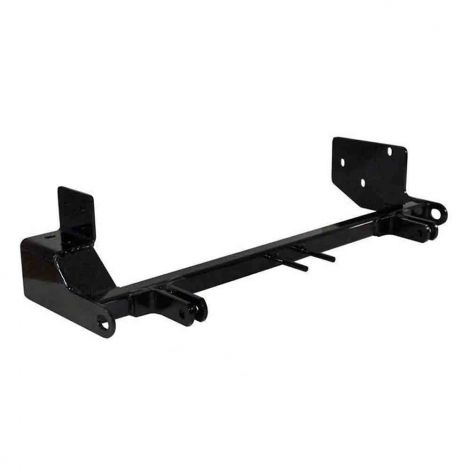

  • Vehicle Specific Custom Baseplate  -                                                                                                             (Baseplate shown, is an example photo of this style of baseplate, please see instructions for actual configuration)
  • Product Details

    Blue Ox baseplates are easy on your suspension and even easier on the eye, because they are designed with hidden reinforcements. Vehicle specific baseplate is integrated into the individual bumper design of the towed vehicle.


    Baseplate Footnotes - 7

    Towed Vehicle Electrical, Brake System & Receiver and Tow Bar Locks are sold separately.

    Baseplates are custom designed for each vehicle, bolting directly into the chassis.
    Uses as many attachment points as possible.

    • Requires no welding
    • Baseplates are hidden beneath the vehicle body
    • All baseplates are backed by a three year limited warranty

    Important Towability Note: Blue Ox offers the above baseplate for your vehicle, but how that vehicle is equipped (i.e. automatic transmission, 4-wheel drive, etc.) must be considered when determining its towability. Please read the owner's manual and/or consult your dealer to determine if your vehicle is flat towable and the correct towing procedures for your vehicle. Additional equipment such as a transmission pump or driveshaft disconnect may be required and are sold separately. Failure to comply with these requirements may result in damage to the towed vehicle or personal injury.



    Specifications

    Specifications
    Brand Blue Ox
    Baseplate Install Time 2 hours
    Tab Type Standard
    Tab Height 14 inch
    Tab Width 24 inch
    Made In USA
    Warranty Three Years Limited
    Suggested Wiring Bulb and Socket Tail Light Wiring Kit - BX8869

    Instructions

    CLICK HERE

    Compatibility

    Year Make Model Category Description
    2004 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
    2004 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
    2003 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
    2003 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
    2002 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
    2002 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
    2001 GMC S-15 Jimmy Flat Tow Baseplates 2 and 4 Wheel Drive
    2001 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
    2001 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
    2001 GMC Envoy Flat Tow Baseplates All Models
    2000 GMC S-15 Jimmy Flat Tow Baseplates 2 and 4 Wheel Drive
    2000 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
    2000 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
    2000 GMC Envoy Flat Tow Baseplates All Models
    1999 GMC S-15 Jimmy Flat Tow Baseplates 2 and 4 Wheel Drive
    1999 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
    1999 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
    1999 GMC Envoy Flat Tow Baseplates All Models
    1998 GMC S-15 Jimmy Flat Tow Baseplates 2 and 4 Wheel Drive
    1998 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
    1998 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
    1998 GMC Envoy Flat Tow Baseplates All Models
    1997 GMC S-15 Jimmy Flat Tow Baseplates 2 and 4 Wheel Drive
    1997 Oldsmobile Bravada Flat Tow Baseplates 4 Wheel Drive
    1997 Chevrolet S-10 Blazer Flat Tow Baseplates 4 Wheel Drive
    1997 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
    1997 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
    1996 Oldsmobile Bravada Flat Tow Baseplates 4 Wheel Drive
    1996 Chevrolet S-10 Blazer Flat Tow Baseplates 4 Wheel Drive
    1996 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
    1996 GMC S-15 Jimmy Flat Tow Baseplates 4 Wheel Drive
    1996 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
    1995 Chevrolet S-10 Blazer Flat Tow Baseplates 4 Wheel Drive
    1995 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
    1995 GMC S-15 Jimmy Flat Tow Baseplates 4 Wheel Drive
    1995 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
    1994 Chevrolet S-10 Pickup Flat Tow Baseplates 4 Wheel Drive
    1994 GMC S-15 and Sonoma Pickup Flat Tow Baseplates 4 Wheel Drive
