15 Ton Spring Mount, Swivel Type Pintle Hook - Commercial Mount

Buyers

SKU
BP100A
List Price: $296.23
$257.59
Out-Of-Stock
- +

Product ships FREE on orders over $99

Have a Question ? Talk to a specialist- Live chat or call 877-509-0719

The pintle hook is ideal for construction and utility equipment, military equipment, and highway construction towing purposes for loads up to 30,000 lb. For off-road use, load should be reduced by 25%.

Product Common Use: Construction and Utility Equipment Towing, Road Construction, Military Equipment Towing.



Product Details

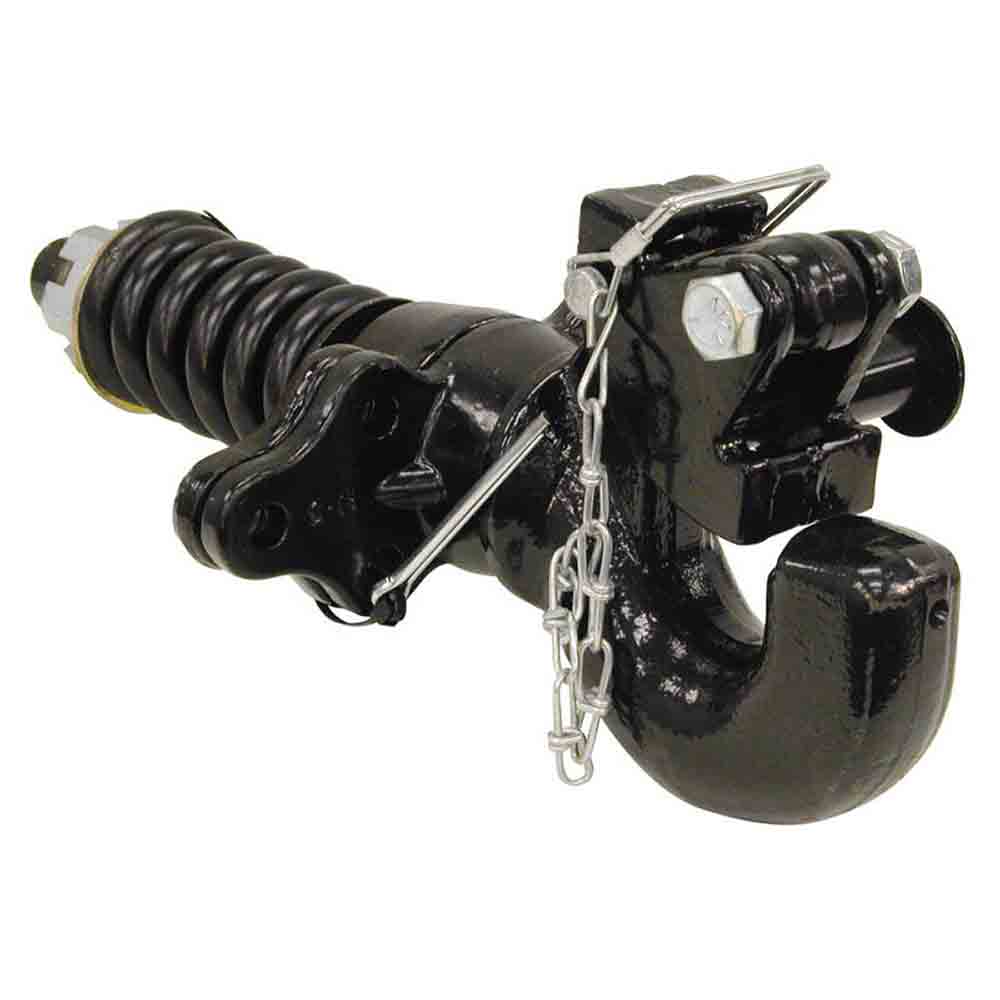

Swivel-type pintle hook with spring cushion. Swivel action provides torsional relief of the coupling. Recommended for off-road application (capacities reduced by 25%). Use with 2-3/8" to 3" I.D. tow ring (lunette ring) with 1-1/4" to 1-5/8" diameter section. Pintle hooks are individually boxed and include mounting information sheet, spec sheet, and vehicle capacity decal.

  • Mounts to commercial truck body hitch plates only
  • Black painted finish
  • Reduces towing stress upon acceleration
  • Provides torsional relief when towing over uneven terrain
  • Compares to Holland # PH-T-100A

Specifications

Specifications
Brand Buyers
Finish Black Powder Coat
Gross Towing Weight (WC) 30,000 lbs.
Tongue Weight 6,000 lbs.
