Combination Pintle Hook with 2 Inch Ball, Mounting Plate and Hardware

Rigid Hitch

SKU
DPH-2000-8KIT
List Price: $274.95
$184.19
In-Stock
- +

Product ships FREE on orders over $99

Have a Question ? Talk to a specialist- Live chat or call 877-509-0719

Combination Pintle Hook with 2 Inch Ball, Mounting Plate and Hardware

Product Details

Solid shank pintle hook mounting plate for 2 inch receivers. See specifications above.

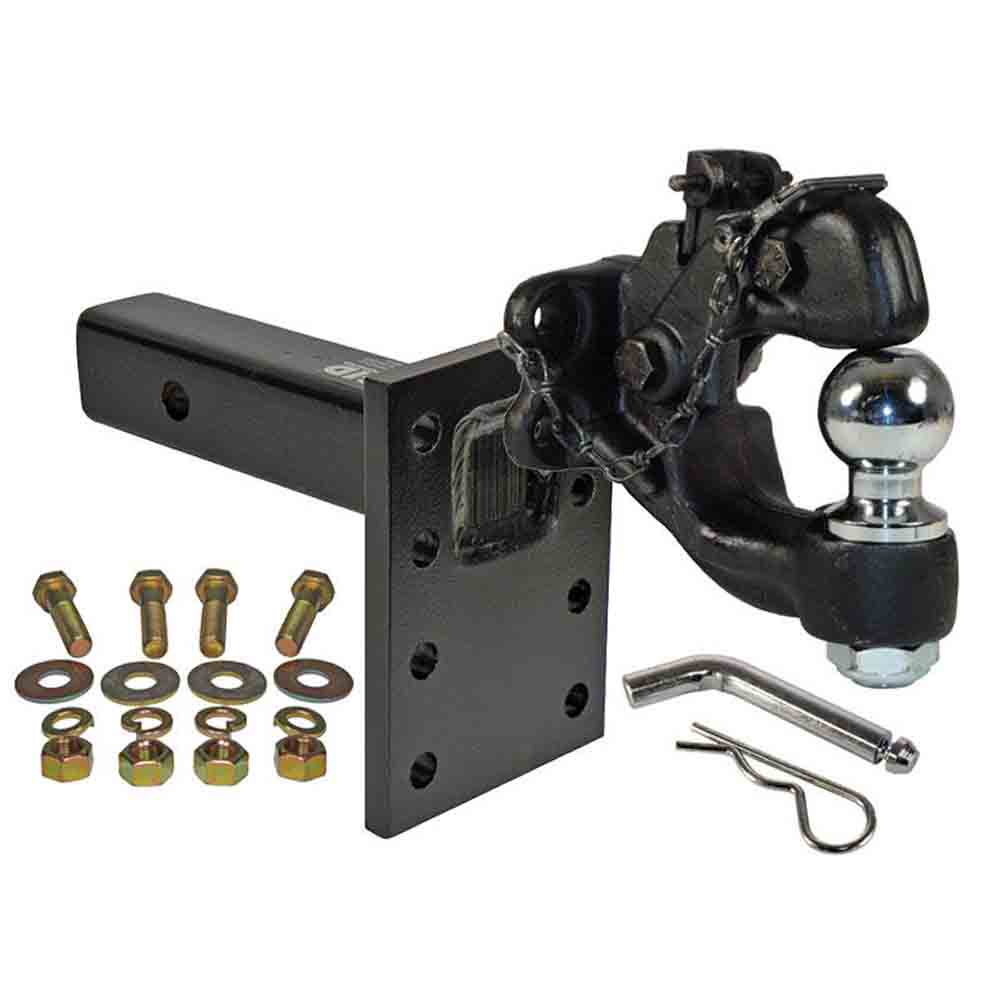

The combination pintle hook is equipped with 2 inch chrome ball with positive locking latch and tethered pin. 15,000 lbs gross trailer weight rating, 1,500 lbs tongue weight rating.

Also included are four grade 8 bolts, nuts and washers to attach the pintle hook to the mounting plate and a 5/8 inch diameter pin and clip for mounting the assembly in any 2 inch receiver.

  • Converts 2 inch receivers for use with Pintle-Type trailers, quickly and easily
  • Provides mounting for both ball and pintle or rigid type Pintle Hooks
  • Pintle mount - black powder coat finish / Pintle hook - black painted finish
  • Pintle hook has the standard bolt hole configuration - 1-3/4 inch x 3-3/8 inch
  • 2 inch ball can be interchanged
  • Drop forged construction
  • All products in this assembly are Made in U.S.A.

Specifications

Specifications
Brand Rigid Hitch
Finish Black Powder Coat
Gross Towing Weight (WC) 15,000 lbs.
Height C 7 inch
Height G 1-3/4 inch
Hole E 5/8 inch
Hole Sets 4
Mounting Bolt Pattern 1-3/4 inch x 3-3/8 inch
Shank Length A 6-1/4 inch
Shank Length B 2-1/2 inch
Shank Size 2 inch
Shank Type Solid
Tongue Weight 1,500 lbs.
Width D 5 inch
Width F 3-3/8 inch
