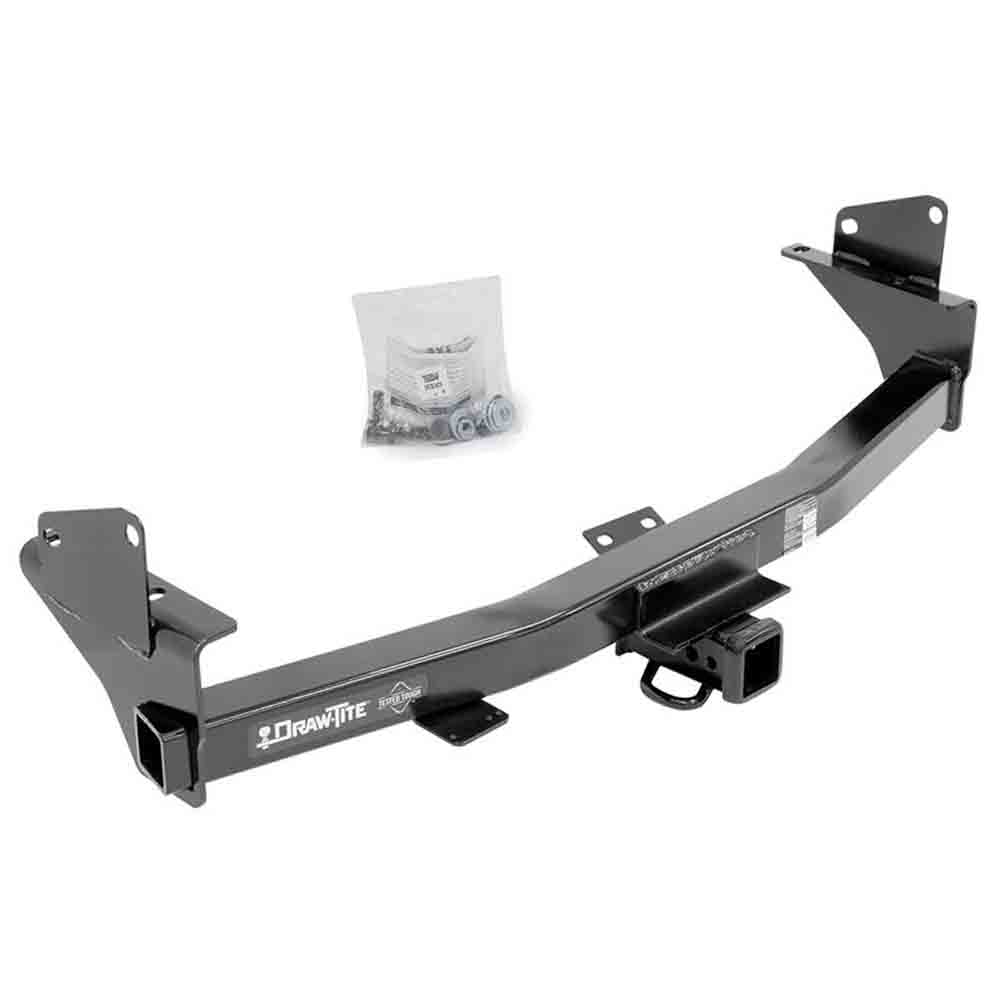

Draw-Tite Max-Frame 2" Receiver fits 2015-2022 Chevrolet Colorado, and GMC Canyon
Please Note: This is a custom fit product. Please verify fit before ordering. Fit Finder
Have a Question ? Talk to a specialist- Live chat or call 877-509-0719
Draw-Tite Max-Frame Receiver fits 2015-2022 Chevrolet Colorado, and GMC Canyon
Product Details
Class III/IV hitches are Weight Carrying (WC) and also are Weight Distributing (WD) hitches depending on the vehicle and hitch specifications. Not all Class III/IV hitches are rated to do both. Please see the Specifications tab above for the weight carrying and weight distributing ratings (if applicable) for this hitch.
In order to use a hitch to its maximum weight carrying capacity, a ball mount and hitch ball of the same rating or higher is required. To use the weight distribution side of the hitch, a weight distribution system is required. All of these items are sold separately. Class III/IV hitches attach primarily to the vehicle frame. Always consult your owner's manual to determine your vehicle's maximum towing capacity.
- No Drilling Required
- Hitch crosstube is visible beneath bumper
- Installation requires OEM bumper and brackets
- Requires temporary removal of bumper during installation
- With this hitch installed, step bumper can no longer be used for towing.
- Requires replacement of the impact structure with hitch
Specifications
| Brand | Draw-Tite |
|---|---|
| Receiver Size | 2 inch |
| Gross Towing Weight (WC) | 8,000 lbs. |
| Tongue Weight | 800 lbs. |
| Dist Gross Trailer Weight (WD) | 10,000 lbs. |
| Dist Tongue Weight | 1,000 lbs. |
| Hitch Class | Class IV |
| Finish | Black Powder Coat |
| Installation Time | 35 minutes |
| Warranty | Limited Lifetime Warranty |
Instructions
Compatibility
| Year | Make | Model | Category | Description |
|---|---|---|---|---|
| 2022 | GMC | Canyon | Rear Mounted Receivers | All Models |
| 2022 | Chevrolet | Colorado | Rear Mounted Receivers | All Models |
| 2021 | GMC | Canyon | Rear Mounted Receivers | All Models |
| 2021 | Chevrolet | Colorado | Rear Mounted Receivers | All Models |
| 2020 | GMC | Canyon | Rear Mounted Receivers | All Models |
| 2020 | Chevrolet | Colorado | Rear Mounted Receivers | All Models |
| 2019 | GMC | Canyon | Rear Mounted Receivers | All Models |
| 2019 | Chevrolet | Colorado | Rear Mounted Receivers | All Models |
| 2018 | GMC | Canyon | Rear Mounted Receivers | All Models |
| 2018 | Chevrolet | Colorado | Rear Mounted Receivers | All Models |
| 2017 | GMC | Canyon | Rear Mounted Receivers | All Models |
| 2017 | Chevrolet | Colorado | Rear Mounted Receivers | All Models |
| 2016 | GMC | Canyon | Rear Mounted Receivers | All Models |
| 2016 | Chevrolet | Colorado | Rear Mounted Receivers | All Models |
| 2015 | GMC | Canyon | Rear Mounted Receivers | All Models |
| 2015 | Chevrolet | Colorado | Rear Mounted Receivers | All Models |
