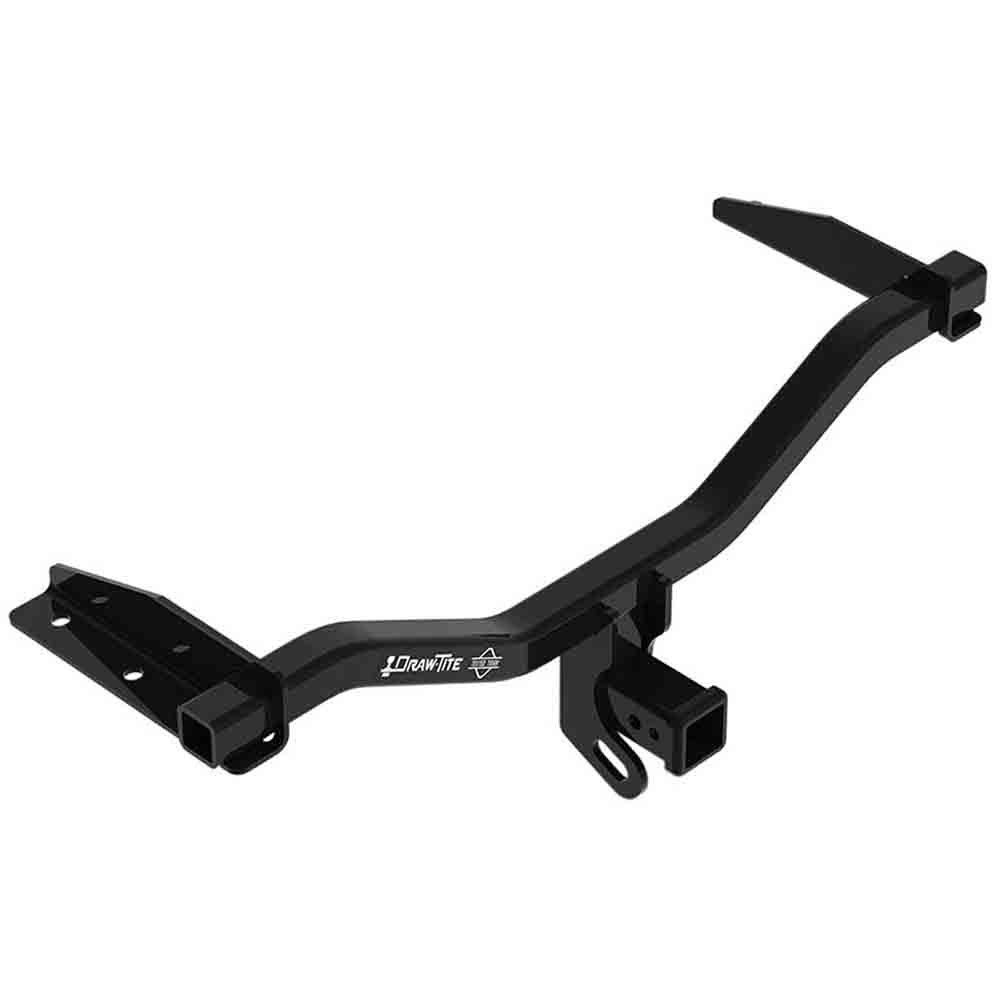

Class III/IV Trailer Hitch Receiver fits 2018-2020 Chevrolet Equinox and GMC Terrain Diesel Engine Models

Draw-Tite

SKU
76217
List Price: $515.95
$248.99
In-Stock

Please Note: This is a custom fit product. Please verify fit before ordering. Fit Finder

- +

Product ships FREE on orders over $99

Have a Question ? Talk to a specialist- Live chat or call 877-509-0719

Draw-Tite 76217 Class III/IV Trailer Hitch Receiver Fits

  • 2018-2020 GMC Terrain Diesel Models Only
  • 2018-2019 Chevrolet Diesel Models Only

Product Details

Class III/IV hitches are Weight Carrying (WC) and also are Weight Distributing (WD) hitches depending on the vehicle and hitch specifications. Not all Class III/IV hitches are rated to do both. Please see the Specifications tab above for the weight carrying and weight distributing ratings (if applicable) for this hitch.

In order to use a hitch to its maximum weight carrying capacity, a ball mount and hitch ball of the same rating or higher is required. To use the weight distribution side of the hitch, a weight distribution system is required. All of these items are sold separately. Class III/IV hitches attach primarily to the vehicle frame. Always consult your owner's manual to determine your vehicle's maximum towing capacity.

  • No Drilling Required
  • Additional installation time may be required
  • Fascia trimming required
  • Exhaust must be temporarily lowered for installation
  • Requires replacement of the impact structure with hitch
  • Minor fascia trimming required

Specifications

Specifications
Brand Draw-Tite
Receiver Size 2 inch
Gross Towing Weight (WC) 4,500 lbs.
Tongue Weight 675 lbs.
Dist Gross Trailer Weight (WD) 4,500 lbs.
Dist Tongue Weight 675 lbs.
Hitch Class Class III/IV
Finish Black Powder Coat
Installation Time 70 minutes
Warranty Limited Lifetime Warranty

Instructions

CLICK HERE

Compatibility

Year Make Model Category Description
2020 GMC Terrain Rear Mounted Receivers Diesel Models Only
2019 Chevrolet Equinox Rear Mounted Receivers Diesel Models Only
2019 GMC Terrain Rear Mounted Receivers Diesel Models Only
2018 Chevrolet Equinox Rear Mounted Receivers Diesel Models Only
2018 GMC Terrain Rear Mounted Receivers Diesel Models Only
