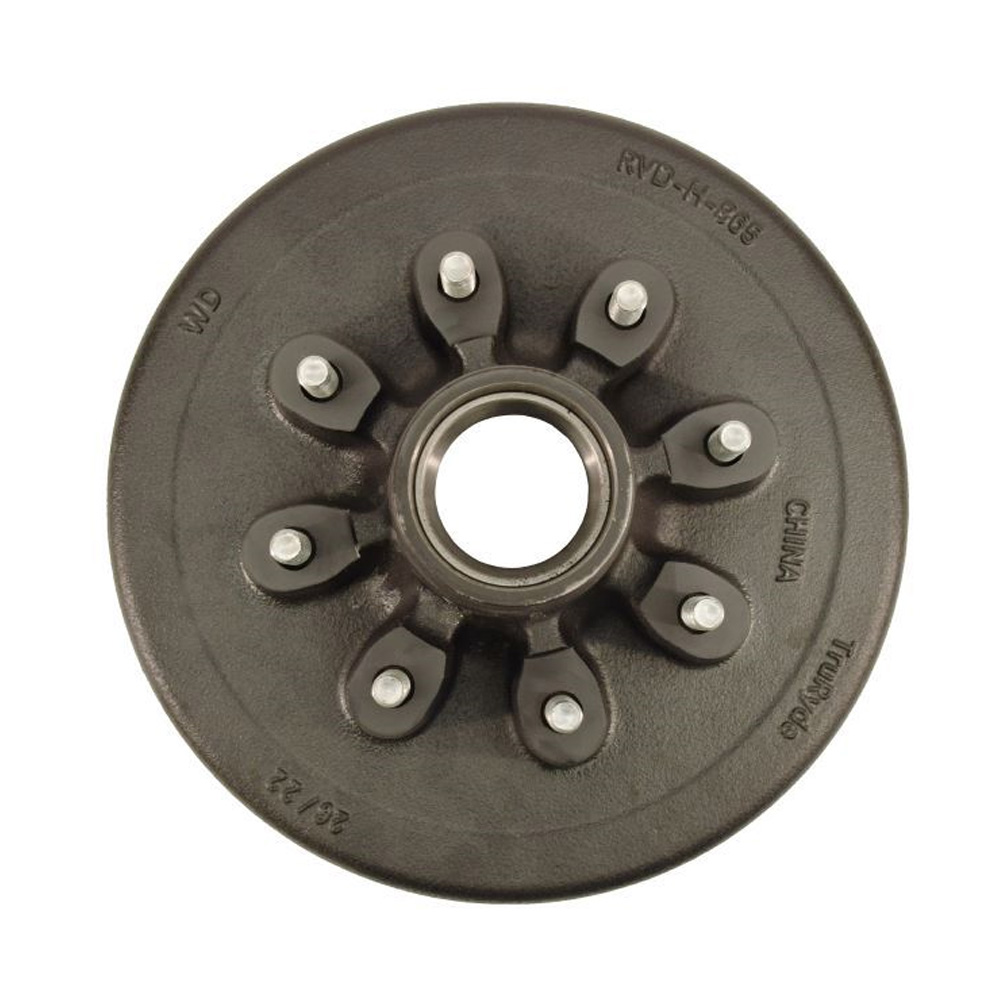

Trailer Hub And Drum, 8 On 6-1/2" Bolt Circle, 3,500 lb. Capacity For 1-3/4" To 1-1/4" Tapered Spindle
SKU
HD-1208-02
List Price:
$122.76
Trailer Hub And Drum, 8 On 6-1/2" Bolt Circle, 3,500 lb. Capacity For 1-3/4" To 1-1/4" Tapered Spindle
$92.76
In-Stock
Have a Question ? Talk to a specialist- Live chat or call 877-509-0719
Trailer Hub And Drum Assembly 8 On 6-1/2" Bolt Circle, 3,500 lb. Capacity For 1-3/4" To 1-1/4" Tapered Spindle
Product Details
12" Hub and Drum has 8 on 6-1/2" bolt circle for 1-3/4" To 1-1/4" tapered spindle for a 5,200lb to 6,000lb axle, hub capacity 3,500 lbs. Includes pressed in bearing races with a pilot diameter is 4-1/2", flange diameter is 8-1/2". Lugs are 1/2"-20.
For use with 12" x 2" electric or hydraulic brakes.
Pilot diameter is 4-1/2", flange diameter is 8-1/2"
Specifications
| Bolt Pattern | 8 x 6.5 |
|---|---|
| Capacity | 3,500 lbs. |
| Depth | 2-1/2 inch |
| Inside Diameter | 12 inch |
| Thread | 1/2-20 |
