A-Frame Trailer Jack with Wheel and Mounting Hardware
Have a Question ? Talk to a specialist- Live chat or call 877-509-0719

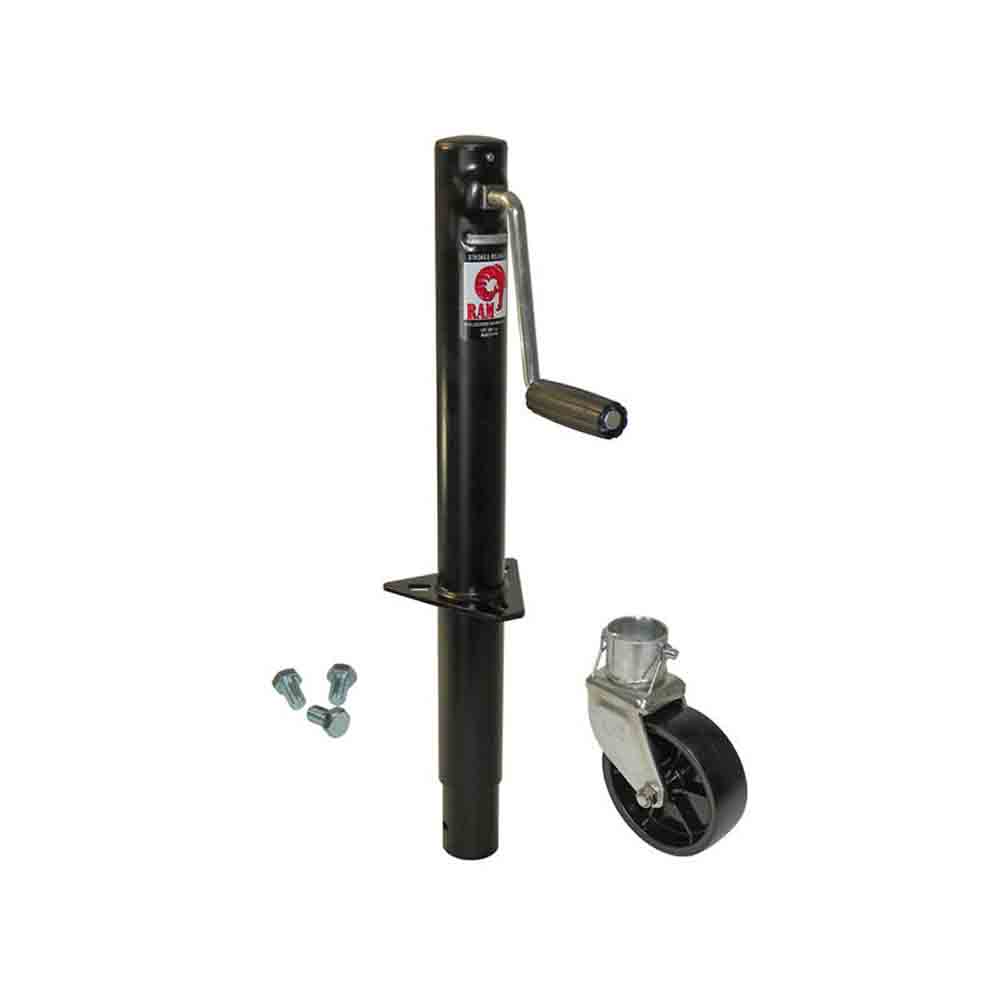

A-Frame Sidewind Trailer Tongue Jack With Wheel and Mounting Hardware for Weld and Bolt on Installation.
Please Note: Any system's capacity is limited to the lowest capacity of its components. In this case, the lowest rated component is the wheel rated at 1,200 lbs.
- 14.5" Travel
- 14.5" Clearance
- 2,000 lbs. Capacity jack
Product Details
This RAM Sidewind Tongue Jack with front facing handle, comes with durable exterior grade black powder coat finish. It also provides a thicker inner tube for greater side load capacities. It is Ideal for RV and Travel Trailer applications. All mounting hardware included
Please note: Any system's capacity is limited to the lowest capacity of its components. In this case, the lowest rated component is the wheel rated at 1,200 lbs.
- 14.5" Travel
- 14.5" Clearance
- 2,000 lbs. Capacity jack
- 6" steel wheel
- Interior gear box for a nice sleek look
- The Mounting Bracket Provides Easy Bolt-On or Weld-On Installation
Not Included:
- Foot- JF-100-B
Specifications
| Brand | RAM |
|---|---|
| Jack Type | Side Wind |
| Clearance C | 14-1/2 inch |
| Extended B | 39-1/2 inch |
| Finish | Black |
| Inner Tube | 2 inch |
| Lift Capacity | 2,000 lbs. |
| Mounting Style | Bolt-On or Weld-On |
| Outer Tube | 2-1/4 inch |
| Retracted A | 25 inch |
| Support Capacity | 3,000 lbs. |
| Travel | 14-1/2 inch |
| Warranty | Limited 1 Year Warranty |
