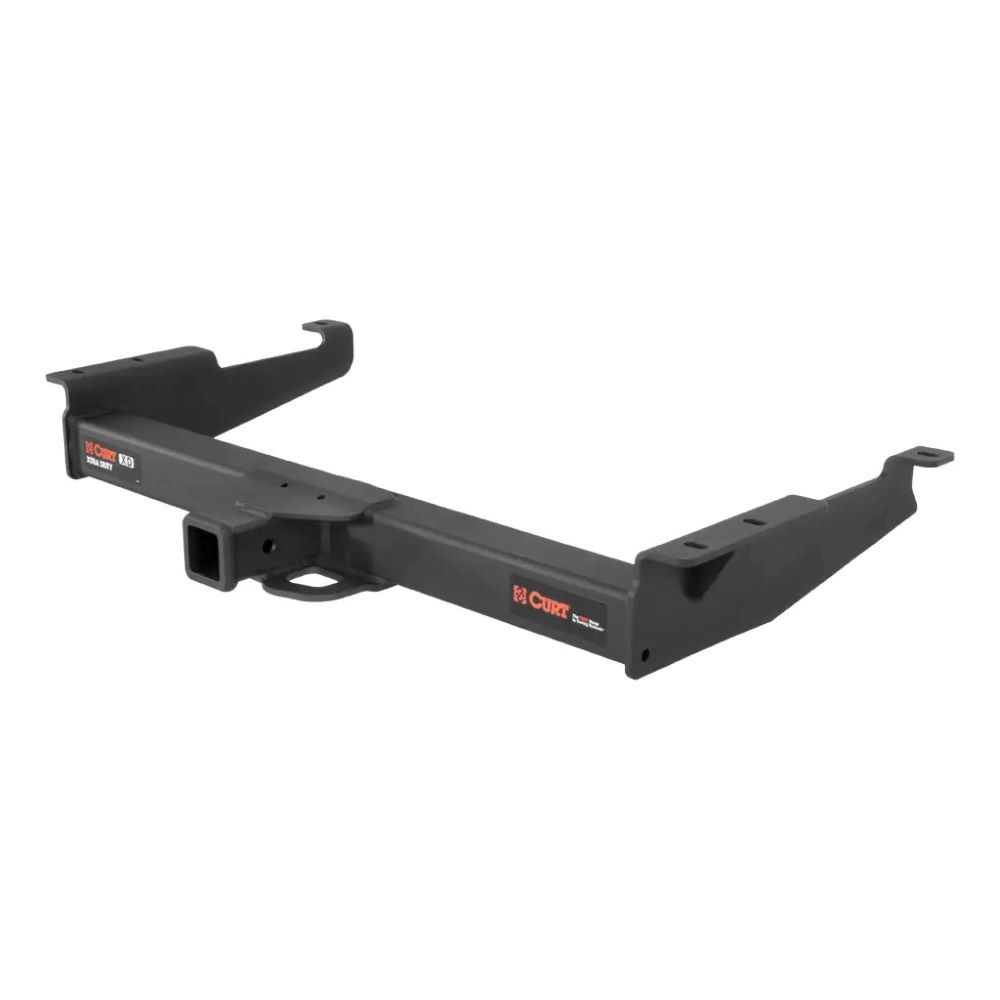

Xtra Duty Class V Trailer Hitch, 2" Receiver, Fits Select Chevy Express, GMC Savana
Please Note : This is a custom fit product. Please verify fit before ordering. Fit Finder
Have a Question ? Talk to a specialist- Live chat or call 877-509-0719
Xtra Duty Class V Trailer Hitch, 2" Receiver, Fits Select Chevy Express, GMC Savana
This class 5 GMC / Chevy hitch is built with an extra-large main body. The hitch is constructed from high-strength steel, and the center section is made extra-large to achieve the necessary towing capacity for tough jobs. This particular hitch is tested and rated for 16,000 pounds gross trailer weight and 2,400 pounds tongue weight. It can also be used with a weight distribution hitch and is rated to 17,000 lbs. WD and 2,400 lbs. WDTW. This makes it the ideal choice for all varieties of heavy-duty trailers -- from full-size utility trailers and equipment haulers to horse trailers and yacht trailers (never exceed the lowest-rated towing component).
Product Details
Rated to 16,000 lbs. gross trailer weight and 2,400 lbs. tongue weight
Compatible with weight distribution hitch (17,000 lbs. WD / 2,400 lbs. WDTW)
Engineered with a vehicle-specific design for a custom fit
Tested for safety in accordance with SAE J684
Precisely welded for superior strength and fit
Constructed with a large, powerful main body
Protected by a highly durable carbide powder coat finish
Co-cured in a rust-resistant liquid A-coat, inside and out
Features wide safety chain openings for heavy-duty hooks
Equipped with an open-back receiver for easy cleaning
Limited lifetime warranty (one-year finish, one-year parts)
Made in USA (may include imported hardware)
Notes:
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes strong, grade-8 installation hardware
Specifications
| Brand | Curt |
|---|---|
| Receiver Size | 2 inch |
| Gross Towing Weight (WC) | 16,000 lbs. |
| Tongue Weight | 2,400 lbs. |
| Dist Gross Trailer Weight (WD) | 17,000 lbs. |
| Dist Tongue Weight | 2,400 lbs. |
| Finish | Black Powder Coat |
| Installation Time | 40 minutes |
| Made In | USA |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
Instructions
Compatibility
| Year | Make | Model | Category | Description |
|---|---|---|---|---|
| 2026 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2026 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2025 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2025 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2024 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2024 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2023 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2023 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2022 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2022 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2021 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2021 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2020 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2020 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2019 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2019 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2018 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2018 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2017 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2017 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2016 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2016 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2015 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2015 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2014 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2014 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2013 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2013 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2012 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2012 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2011 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2011 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2010 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2010 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2009 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2009 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2008 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2008 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2007 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2007 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2006 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2006 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2005 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2005 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2004 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2004 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2003 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2003 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2002 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2002 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2001 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2001 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 2000 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 2000 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 1999 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 1999 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 1998 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
| 1996 | Chevrolet | Express Van | Rear Mounted Receivers | Full Size |
| 1996 | GMC | Savana Van | Rear Mounted Receivers | Full Size |
