10 Ton Pintle Hook, Mounting Plate and Hardware
SKU
RM-10-T-8KIT
List Price:
$175.95
10 Ton Pintle Hook, Mounting Plate and Hardware
$116.95
In-Stock
Have a Question ? Talk to a specialist- Live chat or call 877-509-0719
10 Ton Pintle Hook, Mounting Plate and Hardware
Product Details
Solid shank pintle hook mounting plate for 2 inch receivers. See specifications below.
The 10 ton pintle hook is equipped with a tethered pin. 20,000 lbs gross trailer weight rating / 4,000 lbs tongue weight rating.

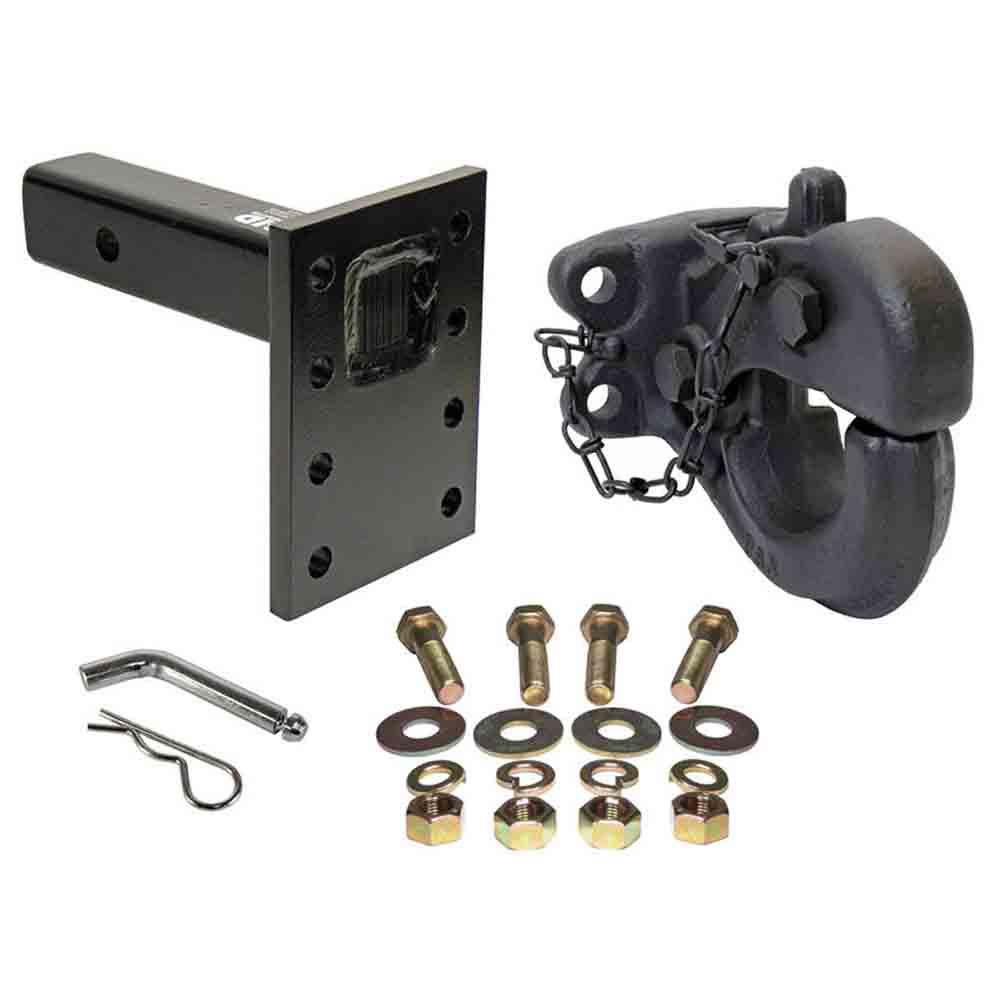

Also included are four grade 8 bolts, nuts and washers to attach the pintle hook to the mounting plate and a 5/8 inch diameter pin and clip for mounting the assembly in any 2 inch receiver.
- Converts 2 inch receivers for use with Pintle-Type trailers, quickly and easily
- Provides mounting for both ball and pintle or rigid type Pintle Hooks
- Pintle mount - black powder coat finish / Pintle hook - black painted finish
- Pintle hook has the standard bolt hole configuration - 1-3/4 inch x 3-3/8 inch
- Drop forged construction
- All products in this assembly are Made in U.S.A.
Specifications
| Brand | Rigid Hitch |
|---|---|
| Finish | Black |
| Height C | 7 inch |
| Height G | 1-3/4 inch |
| Hole E | 5/8 inch |
| Hole Sets | 4 |
| Mounting Bolt Pattern | 1-3/4 inch x 3-3/8 inch |
| Shank Length A | 6-1/4 inch |
| Shank Length B | 2-1/2 inch |
| Shank Size | 2 inch |
| Shank Type | Solid |
| Tongue Weight | 1,500 lbs. |
| Width D | 5 inch |
| Width F | 3-3/8 inch |
