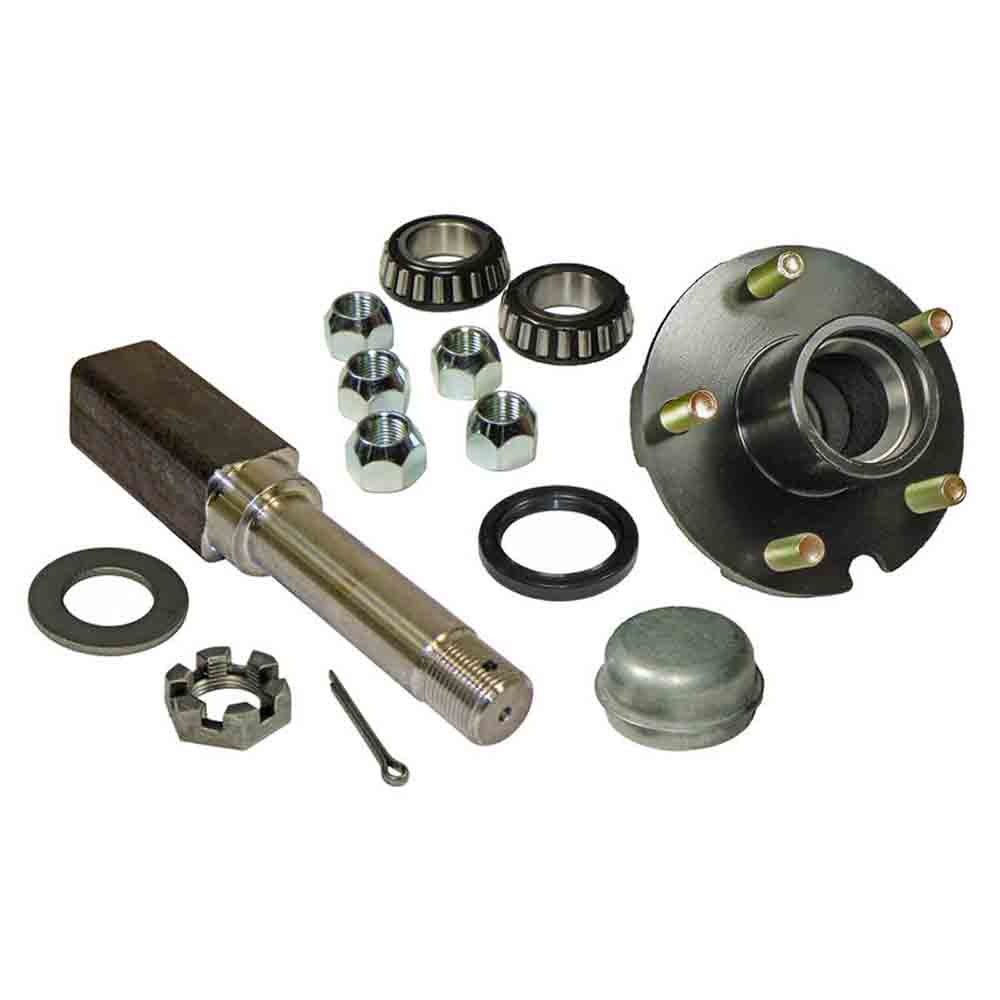

Easily build your own axle with this 2,200 lb. rated assembly. (Rated as a pair) This kit includes (1) 5-bolt on 4-1/2 inch bolt center hub for 2,200 lb. axles, (1) 1-1/16 inch straight spindle, (1) castle nut, (1) cotter pin, (5) 1/2-20 lug nuts, (1) 1.987 O.D. x 1.249 I.D. grease seal, (2) L-44649 1-1/16 inch I.D. inner/outer bearings and (1) 1.986 O.D. x 1.16 inch depth, dust cap.
Please Note: Fabricating an axle requires the proper equipment needed to apply a weld. If you are uncomfortable with your welding capabilities, this project should be handled by a qualified welder.
1-1/16 inch straight spindle includes castle nut and cotter pin
Bearings included - (2) L-44649 1-1/16 inch inside dimension
Hub has pre-installed pressed in races
Hub has a 5-bolt pattern on 4-1/2 inch bolt circle. Pilot diameter 2-1/2 inch, flange diameter 5.56 inch and measures 4-1/4 inch tall.
Spindle features a SQUARE 1-1/2 inch stock diameter with a bearing surface of 1 inch
