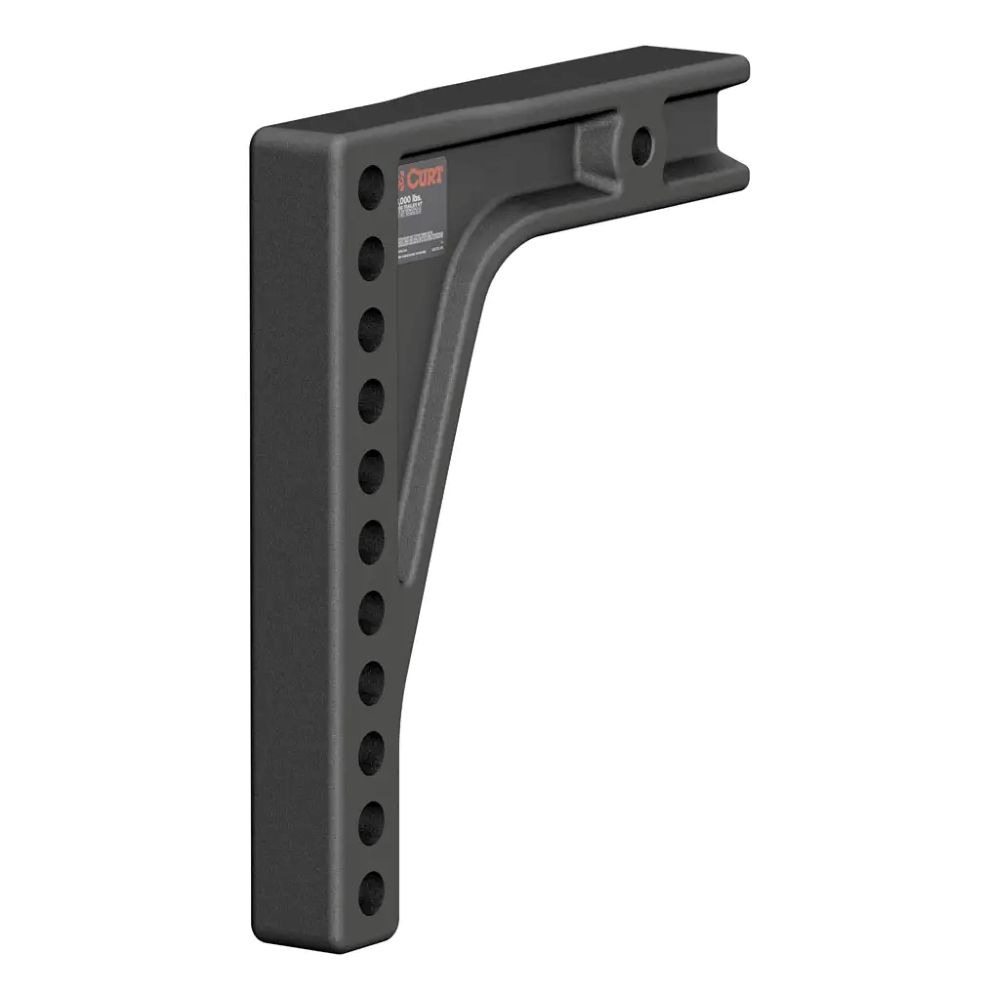

Weight Distribution Shank (2-1/2" Shank, 8" Drop)
Ships directly from the manufacturer — saving you on shipping and freight costs in most cases. Delivery times are managed by the manufacturer; contact us for shipping updates.
Learn MoreHave a Question ? Talk to a specialist- Live chat or call 877-509-0719
Weight Distribution Shank (2-1/2" Shank, 8" Drop)
The 2-1/2" horizontal shank is designed to fit any 2-1/2" x 2-1/2" trailer hitch receiver. This makes it the perfect choice for a CURT Commercial Duty class 5 hitch or other heavy-duty hitches with 2-1/2" receivers. The shank features rounded edges for easier insertion into the receiver tube, and it has a 5/8" diameter hole to accept a hitch pin or hitch lock for secure mounting in the receiver.
This particular weight distribution shank is 14-1/2" high by 12-1/2" long, measured from the outermost holes center-to-center. Each hole in the vertical shank has a 3/4" diameter, and they are spaced 1-1/4" apart for a wide range of incremental adjustment of the WD head. With an overall height of 14-1/2", this WD shank provides a maximum drop of 8" (not rated for use in rise position).
Product Details
- Provides an adjustable mount for any CURT weight distribution hitch
- Rated for 15,000 lbs. gross trailer weight and 1,500 lbs. tongue weight
- Features multiple holes for adjustable head height
- 3/4" diameter holes are spaced 1-1/4" from center to center
- Fits 2-1/2" x 2-1/2" hitch receiver tube opening with 5/8" hitch pin hole
- Constructed from solid steel for reliable strength
- Protected by a highly durable carbide black powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
Notes:
- Includes shank only (weight distribution hitch sold separately)
- Limited to spring bar capacity
- Features multiple holes for adjustable head height
Specifications
| Brand | Curt |
|---|---|
| Dist Gross Trailer Weight (WD) | 15,000 lbs. |
| Dist Tongue Weight | 1,500 lbs. |
| Drop | 8 inch |
| Finish | Carbide Black Powder Coat |
| Shank Size | 2-1/2 inch |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
