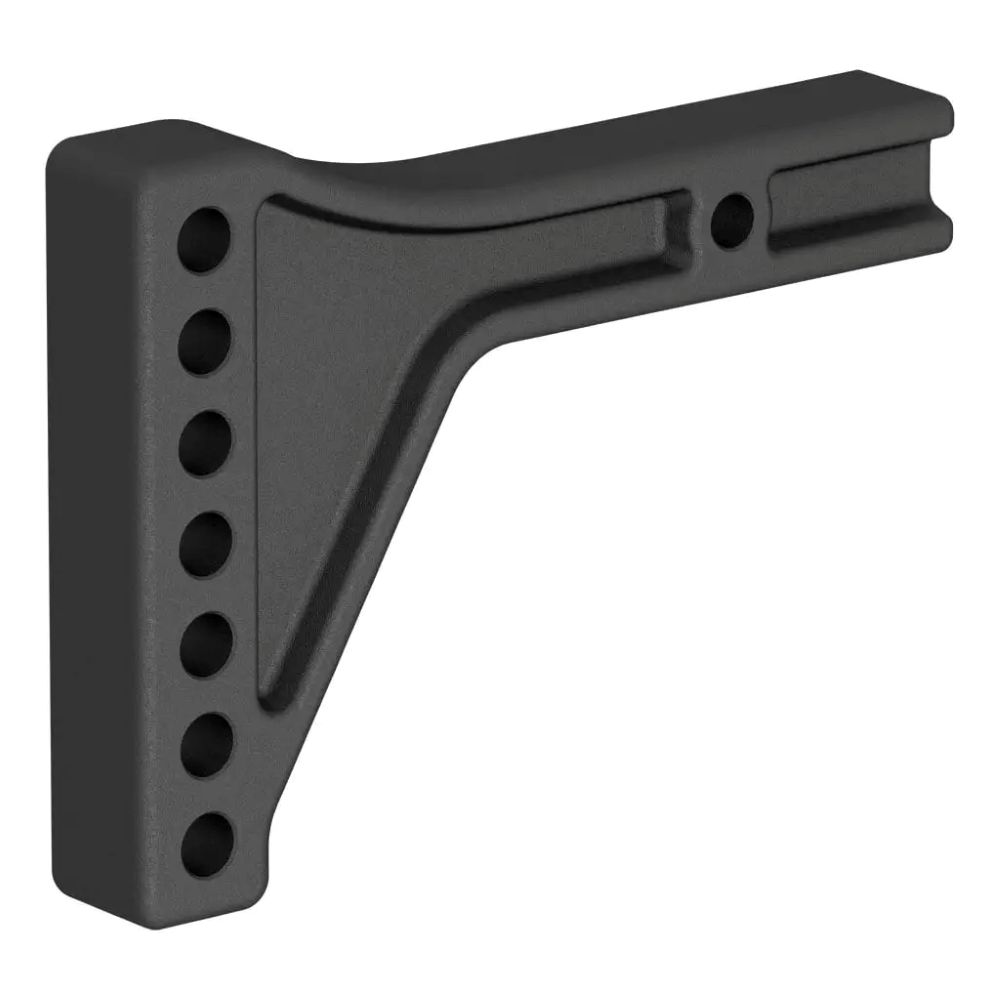

Forged Weight Distribution Shank (2" Shank, 3-1/8" Drop, 7-1/8" Rise)
This CURT replacement weight distribution shank is compatible with all CURT weight distribution hitches. It can be used to replace a damaged shank or to give your WD hitch greater flexibility in vertical adjustment. It features a standard 2" shank, multiple mounting options and a high-strength construction that is fully tested for tough jobs and harsh conditions.
The 2" horizontal shank is designed to fit any 2" x 2" trailer hitch receiver. This makes it the perfect choice for most CURT class 3 hitches, class 4 hitches or Xtra Duty class 5 hitches. The shank features rounded edges for easier insertion into the receiver tube, and it has a 5/8" diameter hole to accept a hitch pin or hitch lock for secure mounting in the receiver.
This particular weight distribution shank is 7-1/2" high by 8" long overall. Each hole in the vertical shank has a 3/4" diameter, and they are spaced 1-1/4" apart for a wide range of incremental adjustment of the WD head. With an overall height of 7-1/2", this WD shank provides a maximum rise of 7-1/8". The entire shank can also be flipped in the receiver tube to provide a maximum drop of 3-1/8".
Product Details
- Provides an adjustable mount for any CURT weight distribution hitch
- Rated for 15,000 lbs. gross trailer weight and 1,500 lbs. tongue weight
- Features multiple holes for adjustable head height
- Can be flipped to provide necessary drop or rise
- 3/4" diameter holes are spaced 1-1/4" from center to center
- Fits 2" x 2" hitch receiver tube opening with 5/8" hitch pin hole
- Constructed from forged steel for superior strength
- Protected by a durable powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
Notes:
- Includes shank only (weight distribution hitch sold separately)
- Limited to spring bar capacity
- Features multiple holes for adjustable head height
Specifications
| Brand | Curt |
|---|---|
| Dist Gross Trailer Weight (WD) | 15,000 lbs. |
| Dist Tongue Weight | 1,500 lbs. |
| Shank Size | 2 inch |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
