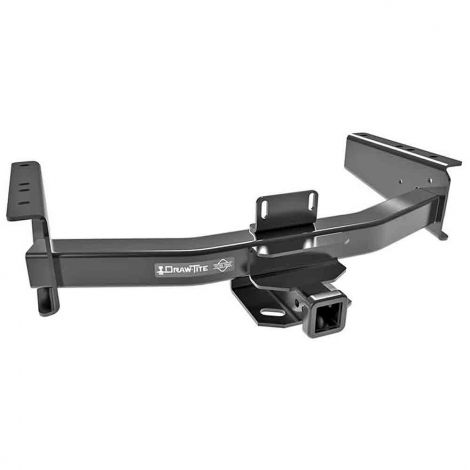

Class V Custom Fit Trailer Hitch Receiver fits Select Ram 1500, New Body Style

Class V trailer hitches are the choice of professionals and big toy haulers who need to get the job done! These heavy-duty hitches are rated for up to 15,000 lbs. gross trailer weight (GTW) and up to 1,700 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 17,000 lbs. weight distribution (WD) and 1,700 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion.

The 2 inch square receiver tube opening, bigger chain loops, tighter ball mount fit, and reinforced pin holes make these heavy-duty hitches ideal for toy haulers and commercial vehicles alike. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards.

Always consult your owner's manual for vehicle rating.

• Uses all existing holes. No Drilling required.
• Ultra Frame ball mount must be used to achieve maximum weight carrying rating.
• Requires temporary removal of bumper during installation
• Fits all models with standard bumpers
• Under vehicle spare tire stowage is retained
• Requires removal of factory hitch if equipped

Optional Accessories

• ZCI Zero Contact Universal Modulite KIt Wiring Light Kit P/N 119251
• Hardwire ModuLite HD Protector Trailer Light Power Module With Wiring Kit Multi-fit Wiring Harness P/N 119148
• Hardwire Multi-Fit Tail Light Wiring Harness P/N 20252

Click Here for a link to our complete Ball Mount Selection
