Draw-Tite Class II 1-1/4 Inch Trailer Hitch Receiver fits 2010-2019 Subaru Legacy Sedan
Please Note: This is a custom fit product. Please verify fit before ordering. Fit Finder
Have a Question ? Talk to a specialist- Live chat or call 877-509-0719

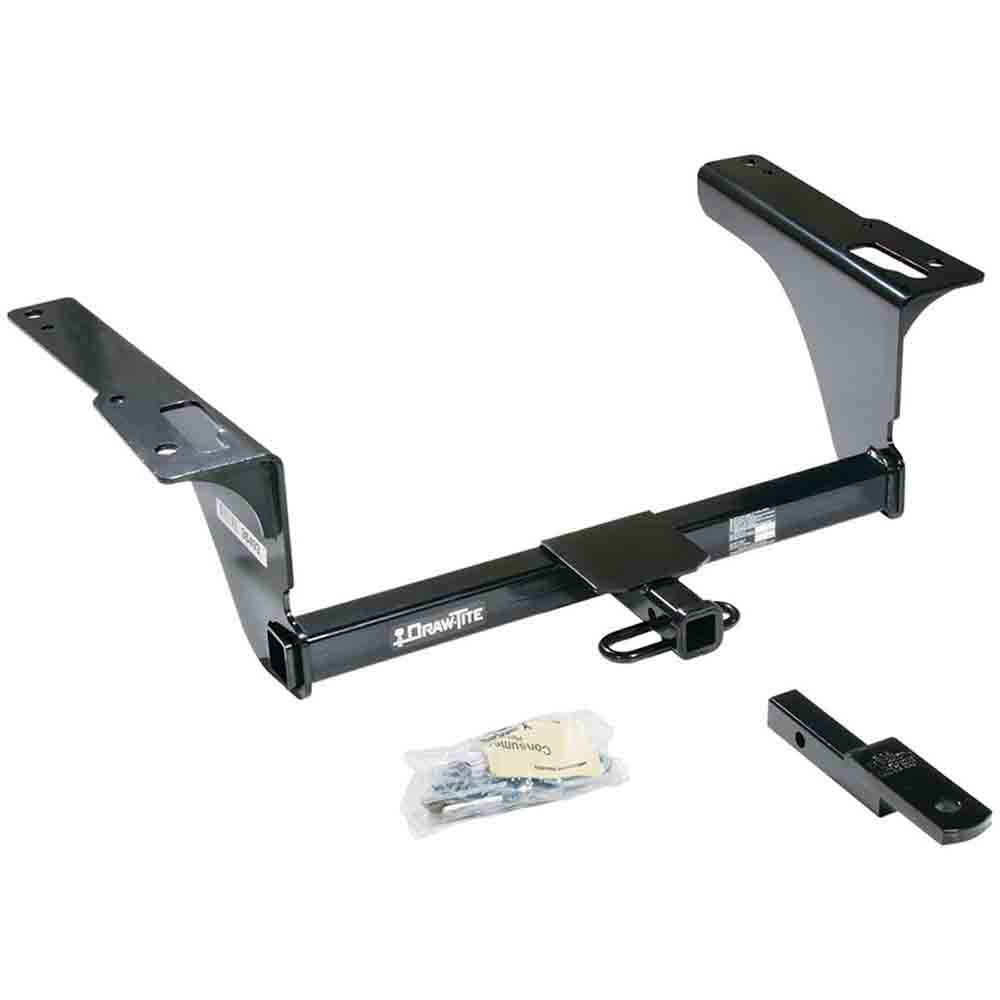

Draw-Tite 36493A Class II, 1-1/4 inch Trailer Hitch Receiver Fits
- 2010-2019 Subaru Legacy Sedan
Product Details
Class II hitches are Weight Carrying (WC) hitches rated up to 3,500 lbs. Gross Trailer Weight (GTW) with a maximum trailer Tongue Weight (TW) of 300 lbs. This style of hitch typically uses a 1-1/4" square receiver opening. The use of a drawbar and hitch ball of the same rating or higher is required. A drawbar, pin, clip and installation hardware are included. Class II hitches normally attach to the vehicle frame and or bumper. Always consult your owner's manual for vehicle rating.
- Exhaust must be temporarily lowered for installation
- Minor heat shield modification may be required
Optional Accessories
- Custom Fit T-Connector for 2015-2019 Subaru Legacy Wiring Light Kit P/N 118671
- Hardwire ModuLite HD Protector Trailer Light Power Module With Wiring Kit Multi-fit Wiring Harness P/N 119148
Specifications
| Brand | Draw-Tite |
|---|---|
| Receiver Size | 1-1/4 inch |
| Gross Towing Weight (WC) | 3,500 lbs. |
| Tongue Weight | 300 lbs. |
| Hitch Class | Class II |
| Finish | Black Powder Coat |
| Material | Steel |
| Installation Time | 45 minutes |
| Warranty | Limited Lifetime Warranty |
Instructions
Compatibility
| Year | Make | Model | Category | Description |
|---|---|---|---|---|
| 2019 | Subaru | Legacy | Rear Mounted Receivers | Sedan |
| 2018 | Subaru | Legacy | Rear Mounted Receivers | Sedan |
| 2017 | Subaru | Legacy | Rear Mounted Receivers | Sedan |
| 2016 | Subaru | Legacy | Rear Mounted Receivers | Sedan |
| 2015 | Subaru | Legacy | Rear Mounted Receivers | Sedan |
| 2014 | Subaru | Legacy | Rear Mounted Receivers | Sedan |
| 2013 | Subaru | Legacy | Rear Mounted Receivers | Sedan |
| 2012 | Subaru | Legacy | Rear Mounted Receivers | Sedan |
| 2011 | Subaru | Legacy | Rear Mounted Receivers | Sedan |
| 2010 | Subaru | Legacy | Rear Mounted Receivers | Sedan |
