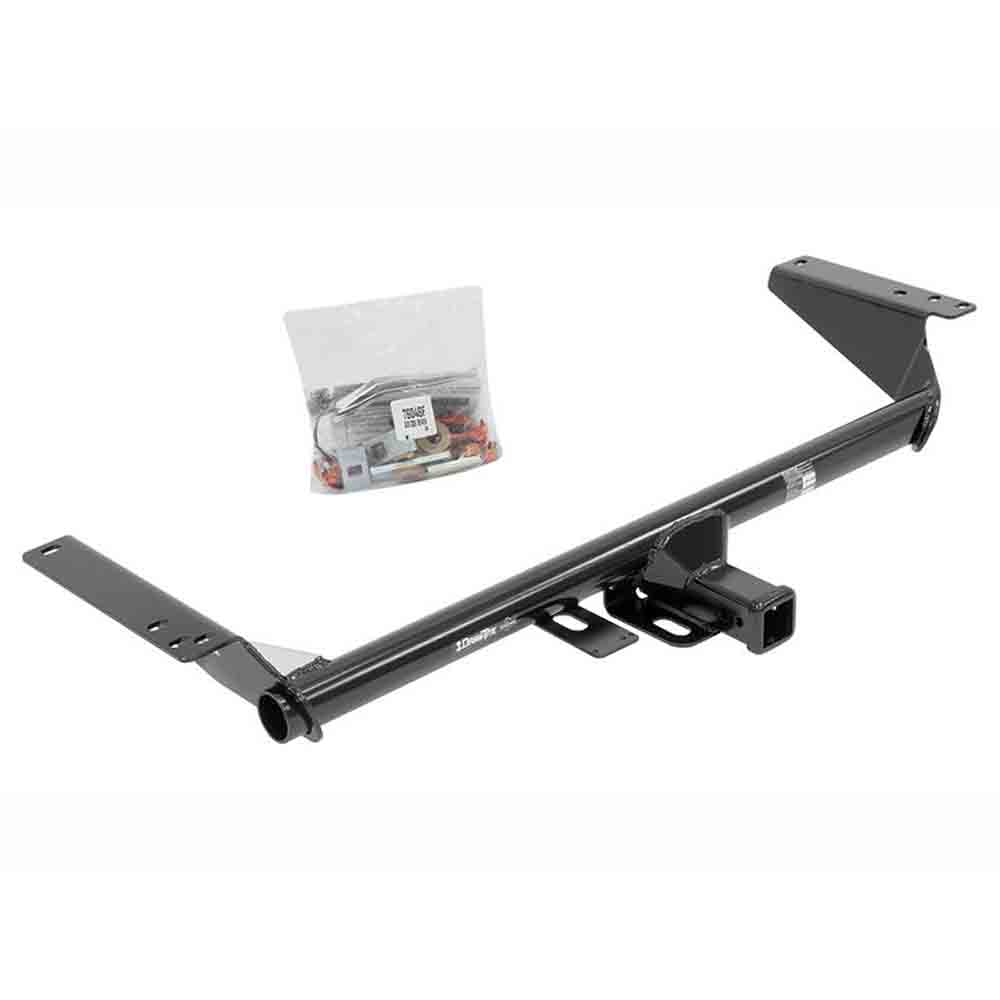

Class III/IV Trailer Hitch Receiver and Hybrid Adapter Kit fits Select Chrysler Pacifica Hybrid (Includes Kit 76046SK)

Please Note : This is a custom fit product. Please verify fit before ordering. Fit Finder
Have a Question ? Talk to a specialist- Live chat or call 877-509-0719
Class III/IV Trailer Hitch Receiver and Hybrid Adapter Kit fits Select Chrysler Pacifica Hybrid (Includes Kit 76046SK)
Product Details
Class III/IV hitches are Weight Carrying (WC) and also are Weight Distributing (WD) hitches depending on the vehicle and hitch specifications. Not all Class III/IV hitches are rated to do both. Please see the Specifications tab above for the weight carrying and weight distributing ratings (if applicable) for this hitch.
In order to use a hitch to its maximum weight carrying capacity, a ball mount and hitch ball of the same rating or higher is required. To use the weight distribution side of the hitch, a weight distribution system is required. All of these items are sold separately. Class III/IV hitches attach primarily to the vehicle frame. Always consult your owner's manual to determine your vehicle's maximum towing capacity.
- No Drilling Required
- Hitch crosstube concealed behind bumper
- Heat shield trimming is required for installation
- Trimming of underbody panel is required
Optional Accessories
- ZCI Zero Contact Universal Modulite KIt Wiring Light Kit P/N 119251
- Hardwire ModuLite HD Protector Trailer Light Power Module With Wiring Kit Multi-fit Wiring Harness P/N 119148
Specifications
| Brand | Draw-Tite |
|---|---|
| Receiver Size | 2 inch |
| Gross Towing Weight (WC) | 4,500 lbs. |
| Tongue Weight | 675 lbs. |
| Dist Gross Trailer Weight (WD) | 5,000 lbs. |
| Dist Tongue Weight | 675 lbs. |
| Hitch Class | Class III/IV |
| Finish | Black Powder Coat |
| Installation Time | 45 minutes |
| Warranty | Limited Lifetime Warranty |
Instructions
Compatibility
| Year | Make | Model | Category | Description |
|---|---|---|---|---|
| 2020 | Chrysler | Pacifica | Rear Mounted Receivers | Hybrid Models |
| 2019 | Chrysler | Pacifica | Rear Mounted Receivers | Hybrid Models |
| 2018 | Chrysler | Pacifica | Rear Mounted Receivers | Hybrid Models |
| 2017 | Chrysler | Pacifica | Rear Mounted Receivers | Hybrid Models |
